Connecting the UMH to Azure

Connecting with Azure IoT Hub

In this article it is described how one can connect the United Manufacturing Hub with Azure IoT hub. In this tutorial we are leveraging the fact that Azure IoT Hub is nothing but a MQTT broker with benefits (e.g., device management or REST API). We will therefore create a connection via MQTT.

Connecting with Azure IoT Hub
Please note that this article is outdated and might not represent the latest architecture of the United Manufacturing Hub or Azure.


  • Basic knowledge about IT / OT, Azure and the difference between symmetric and asymmetric encryption
  • You should have one instance of IoT Hub running and one device created with asymmetric encryption. You can follow our tutorial for setting up Azure IoT Hub.
  • By default Microsoft recommends using symmetric encryption as it is more easier to implement, but they say themselves that asymmetric encryption is more secure. If you are using symmetric encryption (Username / Password authentication, no certificates) there might be some steps that are different for you
  • All information for your Azure IoT Hub device ready:
  • Hostname of the Azure IoT Hub: e.g.,
  • Device ID: e.g., factory3
  • (symmetric) Username: e.g.,
  • (symmetric) Password / SAS Token: e.g., SharedAccessSignature sr=contoso-test……
  • (asymmetric) Certificate files
  • Furthermore, we recommend having access to Azure IoT Hub using the Azure Device Explorer (download required) to verify whether the connection worked.

Option 1: using Node-RED


  • quick
  • easy


  • can be unreliable, e.g., when the user accidentally adds an unstable external plugin, which takes down Node-RED
  • does not buffer data in case of internet outages
Please do not use the official Azure IoT Hub plugin for Node-RED (node-red-contrib-azure-iot-hub). Our customers and we found this plugin to be unreliable and we therefore recommend for using the MQTT out node.

️We will do this in four steps. You can also download our example flows.json, where you just need to change your authentication parameters (certificates or username / password, host, etc.) and you are ready to go.

Step 1: Subscribing to all messages

MQTT-In node in Node-RED

As a first step we take all relevant data out of the MQTT broker and thereby starting a Node-RED flow. Add a MQTT-In node. The MQTT broker details should already been set if you have used our recommended installation method (see also Getting Started).

In the Topic section you can specify what messages from which asset you want to send to Azure IoT Hub using wildcards. If you want to send all messages you can use ia/# as a topic. If you just want to send process values of all machines in plant3 of customer factoryinsight you can use:

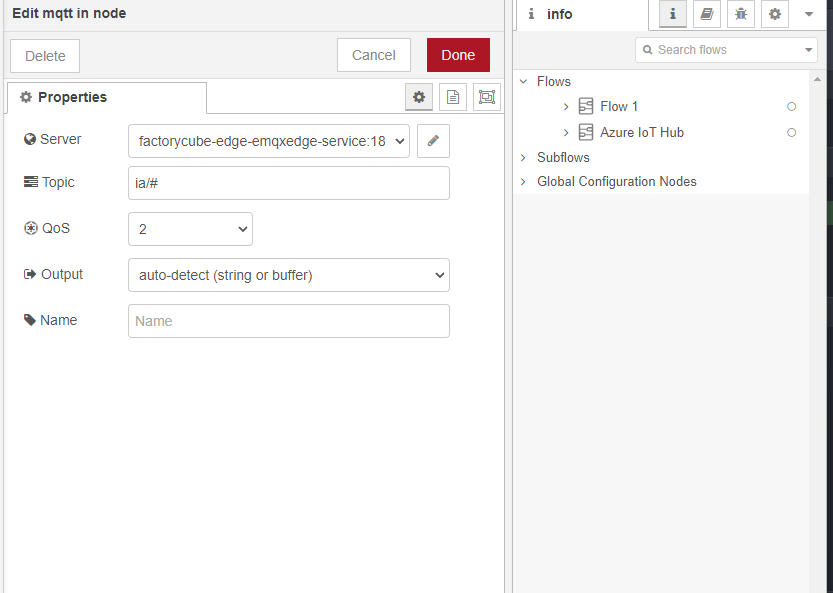

MQTT-In node in Node-RED - detailed view

You can test the flow by adding a debug node and connecting it the MQTT-In node with it.

Step 2: Changing the payload to contain payload and topic

Azure by default does not support the topic structure of the United Manufacturing Hub. As it contains important infortmation, e.g., the asset that the message is about, we will put that into the payload as well.

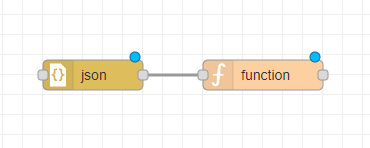

json and function node in Node-RED

Add a json node AND a function node with the following content and connect it to the MQTT-In node that we previously created:

msg.payload = {
    "topic": msg.topic,
    "payload": msg.payload
msg.topic = ""

return msg;

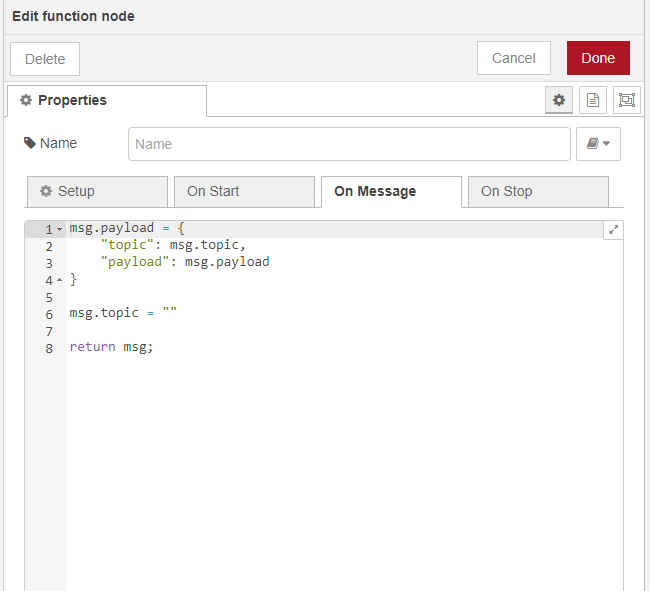

Code pasted into Node-RED

Verify by connecting it with the debug node.

Step 3: Sending the data to Azure IoT Hub

We recommend following the steps in the article Connecting Node-Red to Azure IoT Hub using MQTT nodes from Nikhil Kinkar. He is using symmetric encryption. For asymmetric encryption edit the TLS configuration and upload there your certificates.

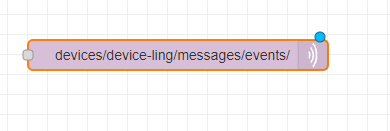

MQTT-out node for connecting Node-RED with Azure IoT

You should have the connection parameters (username, host, port, etc.) already available, if not go to Prerequisites

If necessary: as root CA you need to use the Baltimore CyberTrust Root

Do not forget to set the topic as well (see also the tutorial above):

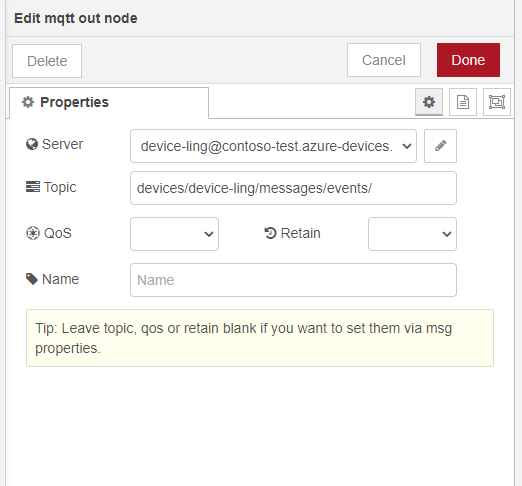

MQTT-out node - topic and server

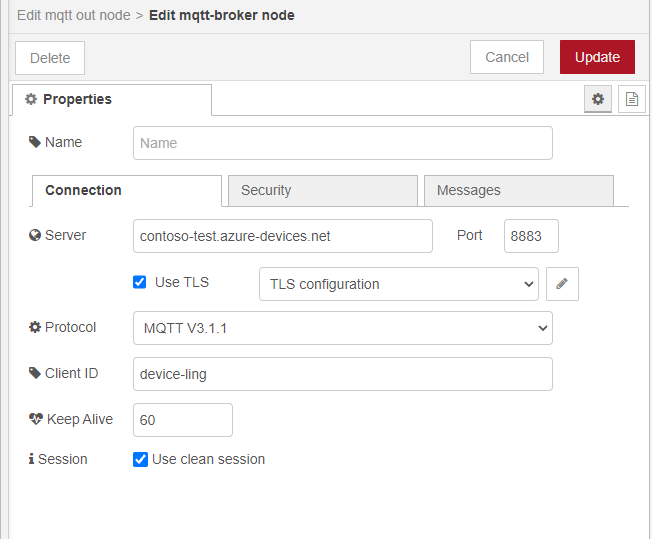

MQTT-out node - MQTT broker (1/2)

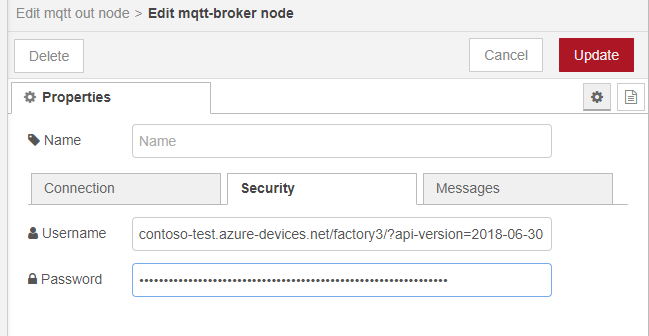

MQTT-out node - MQTT broker (2/2)

Connect it with the previously created function node and test it. If everything went well the messages should now appear in the device explorer in Azure IoT Hub.

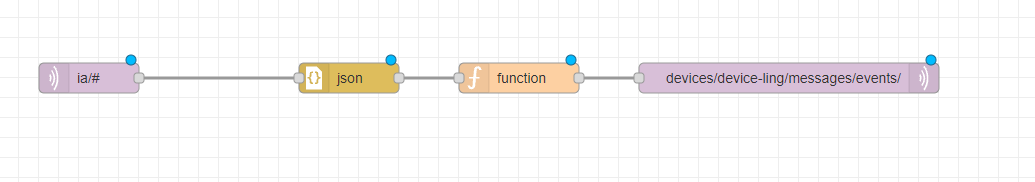

The entire flow

Step 4: check whether the messages appear in Azure IoT Hub using the device explorer

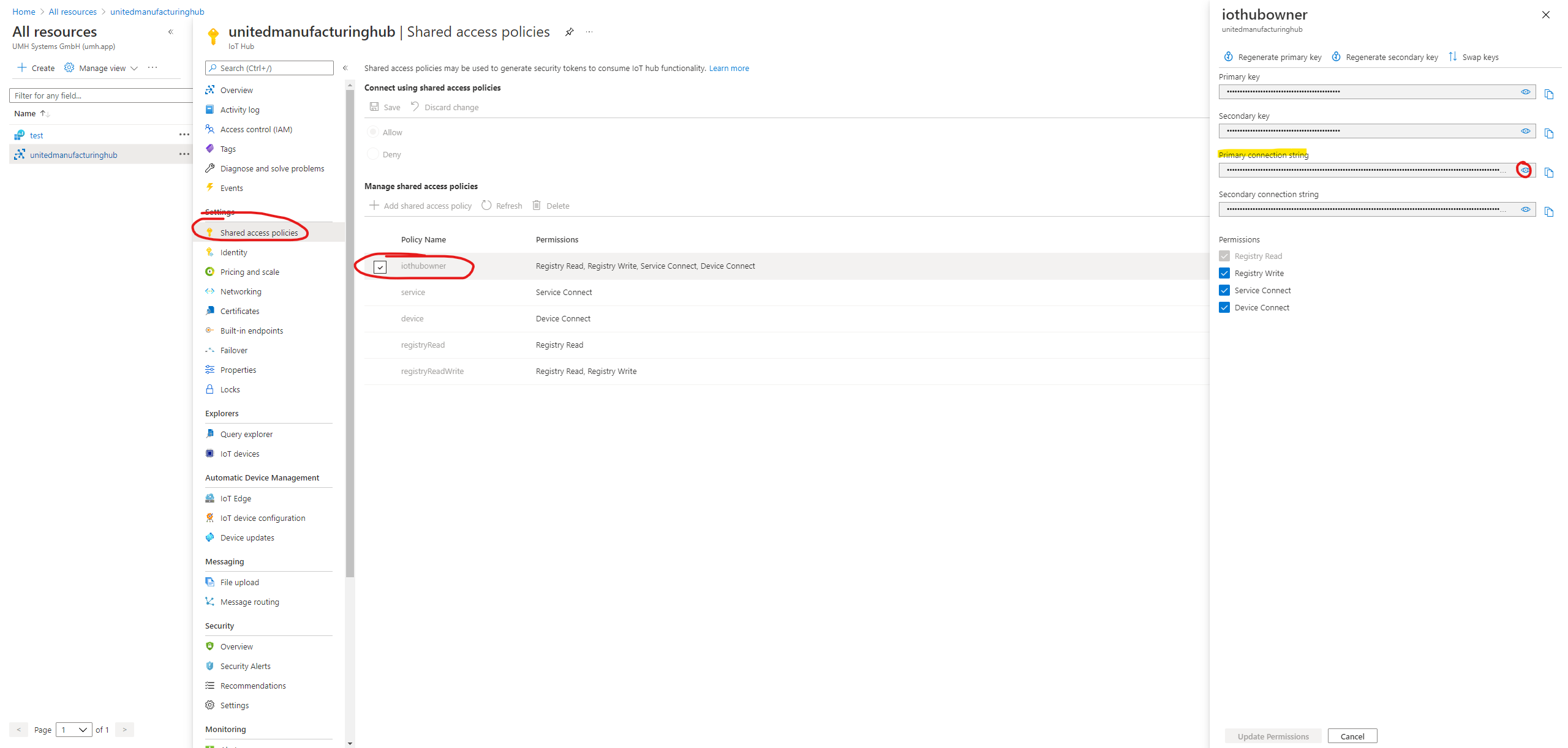

Finding the iothubowner SAS token in Azure

Open the Azure IoT Explorer and connect using your iothubowner SAS token (see image above). If everything went well you should see messages coming up (assuming that there are messages in the local MQTT broker. If not, try to send some debug messages to test the connection).

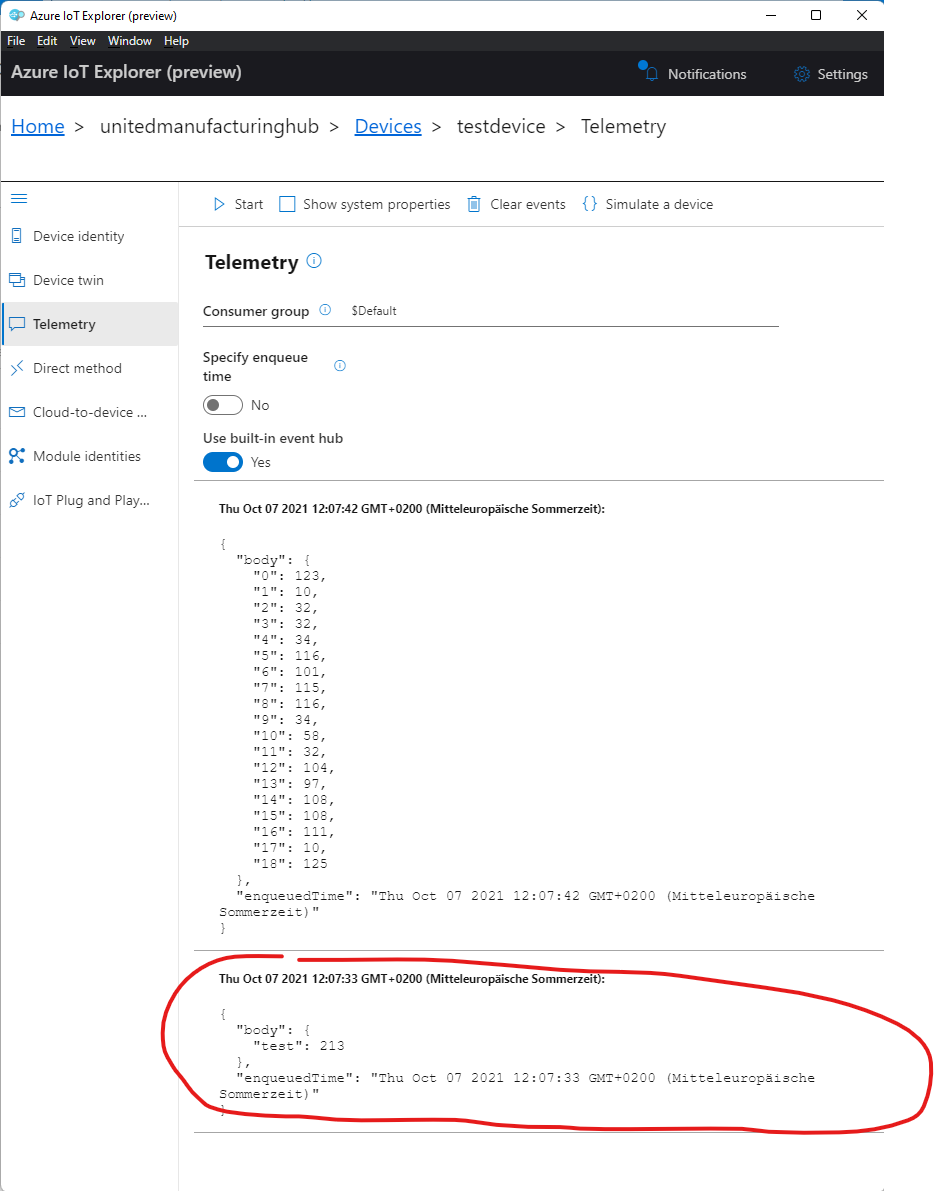

Messages arriving in the Azure IoT Hub Explorer

For more information about how to use the Azure IoT Explorer, take a look into the official documentation

Option 2: using mqtt-bridge

Currently specifying the username, which is required for Azure IoT Hub, is still in development. See also GitHub issue #569 for more information


  • most reliable solution


  • requires slightly more time than option 1

In the setup script or in the Helm chart adjust the following values with the corresponding certificates:

  • mqttBridgeCACert
  • mqttBridgeCert
  • mqttBridgePrivkey

As mqttBridgeCACert you need to use the Baltimore CyberTrust Root

Furthermore, please set username, host, port, etc. accordingly

If you do not know where to get the certificates or the connection parameters, please go back to Prerequisites

What to do now?

Now we send the data to Azure IoT Hub. But what to do now? Here are some ideas:

  1. You could install the United Manufacturing Hub  on Azure Kubernetes Service. You would then be able to immediately start creating dashboard while leveraging Azure’s scalability
  2. You could use Azure’s propertiary services to create a full IIoT infrastructure from scratch. However, this is time intensive as you need to build e.g., your own data model, so we only recommend it for large companies with their own IIoT team. A good next step to proceed from here would be the tutorial Add an IoT hub event source to your Azure Time Series Insight environment
